• Already an existing pad mount transformer
• The installation of the disconnect pedestal and service equipment must be performed by a licensed electrician hired by the party requesting the service
• The service conductor needs to run to transformer pad with appropriate wire size matching breaker in the disconnect, leaving a minimum of 5’ of conductor exposed at the pad.
• Ground wire must be a minimum #6 CU
• ½”x8’ copper clad ground rod must be installed with a one-bolt ground rod clamp.
• The pedestal shall be located behind the transformer to one side and no more than 5’ away.
• No plug-in outlets are allowed to be fed from pedestal
• Recommended disconnect is (Milbank U5200-xl or comparable unmetered enclosure with disconnect)

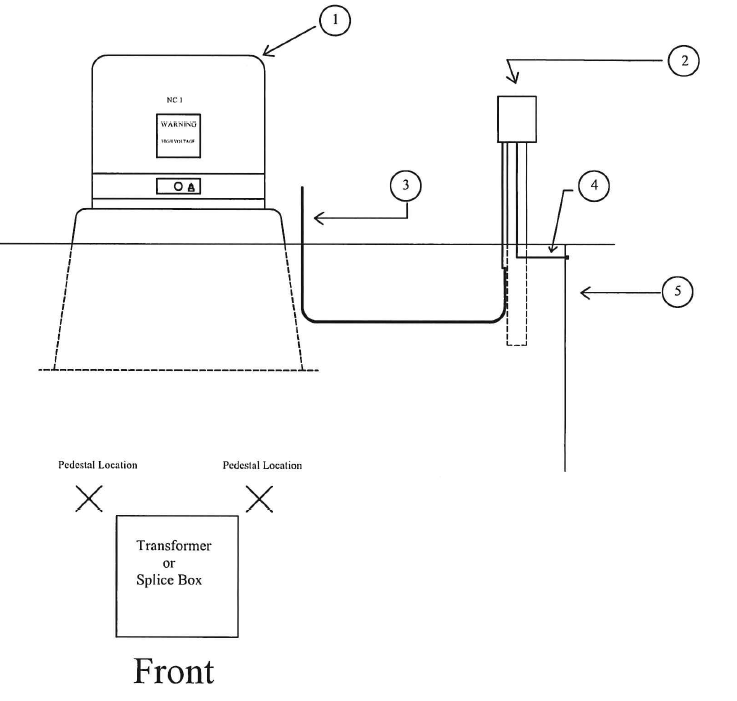

• Diagram (See exhibit C) 1. Pad mount transformer 2. Disconnect and service equipment 3. Service conductor 4. Ground Wire 5. Ground rod

(Exhibit C)
